Sıcaklık, bağıl nem, hava basıncı, rüzgar hızı / yönü, yağış miktarı / yoğunluğu / türü, UV indeksi, güneş yönü, parlaklık ve alacakaranlık ve küresel radyasyon ölçümü ile hepsi bir arada hava sensörü
All-in-one weather sensor with measurement of temperature, relative humidity, air pressure, wind velocity / direction, precipitation amount / intensity / type, UV index, sun direction, brightness and twilight and global radiation
Parameters measured
air temperature, relative humidity, air pressure, wind direction / velocity, precipitation amount / intensity / type, UV index, sun direction, brightness, twilight and radiation
Measurement technology
Capacitive, Doppler radar, silicon pyranometer, thermal
Product highlights
Compact, multiparameter, economic, with dome heating, maintenance-free, open communication protocol, good price performance ratio
Interfaces
RS485, 2-wire, half-duplex; WLAN; supporting Modbus, UMB, UMB ASCII 2.0 protocol
Article number
8368.WS10P; 8368.WS10AP

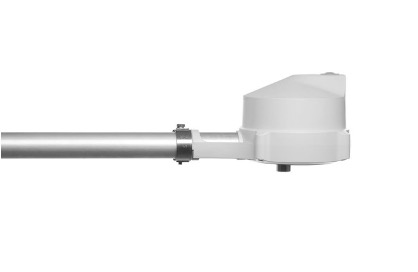

The All-in-One Weather Sensor WS10 covers 10 parameters simultaneously. It‘s particularly suitable for building automation, smart city applications and solar rooftops. The data transfer takes place via Wi-Fi or RS485.
General
| Electrical parameters | |
| Input voltage range | 9-36 VDC |
| Power consumption (without dome heating) | 120 mA (at still air @24V); 360 mA (from ~7 m/s wind @24V) |
| Dome heating | 24 VA @ 24 VDC |
| Max. input power | 32.5 VA @ 24 VDC |
| Housing | |
| Dimensions | 13 x 145 x 227 mm |
| Weight | 0.5 kg |
| Protection class | IP66 |
| Environmental conditions | |
| Permissible rel. humidity | 0 … 100 % |
| Permissible operating temperature | -40 … +60 °C / -40 … +140 °F |
| Communication | |
| Interfaces
|
RS485, 2-wire, half-duplex; WLAN (2.4 GHz; 802.11b/g/n |
| Protocols | Modbus, UMB, UMB ASCII 2.0 |
| Compass | |
| Measurement range | 360 ° |
| Accuracy | ±10 % |
| GPS | |
| Accuracy | ±5 m (50 % CEP) |
| Temperature | |
| Measurement range | -40 … +60 °C / -40 … 140 °F |
| Accuracy
|
±1.0 °C (-5 … +25 °C, wind > 2m/s)
otherwise < ±2.0 °C, with inactive dome heater |
| Relative humidity | |
| Principle | Capacitive |
| Measurement range | 0 … 100 % RH |
| Accuracy | ±5 % (at 20 °C and <80 % rH) |
| Precipitation | |
| Principle | Doppler Radar |
| Measurement range | 0 … 100 mm/h |
| Accuracy | 20 % under laborary conditions |
| Precipit. type | Rain, snow, sleet, freezing rain, hail |
| Global radiation | |
| Principle | Silicon pyranometer |
| Twilight | |
| Principle | Silicon pyranometer |
| Measurement range | 0 … 500 lx |
| Accuracy | ±10 lx |
| Air pressure | |
| Principle | Capacitive |
| Measurement range | 300 … 1100 hPa |
| Accuracy | ±0.5 hPa (@ room temp. 25 °C / 77 °F) |
| Wind direction | |
| Principle | Thermal |
| Measurement range | 0 … 359.9 ° |
| Accuracy | ±10 ° |
| Wind velocity | |
| Principle | Thermal |
| Measurement range | 0 … 40 m/s (0 … 90 mph) |
| Accuracy | ±1 m/s (2.2 mph) or 5 %, the greater value applies |
| Brightness (ambient light sensor) | |
| Principle | Silicon pyranometer |
| Measurement range | 0 … 160 klx |
| Accuracy | ±5 % of the measured value |
| UVA / UVB index | |
| Principle | Silicon pyranometer |
| Measurement range | 0 … 15 UV index |
| Measurement range | 0 … 1500 W/ m² |
| Accuracy | 10 % or @ ±120 W/m², the greater value applies |
| Sun direction | |
| Principle | Calculated |
