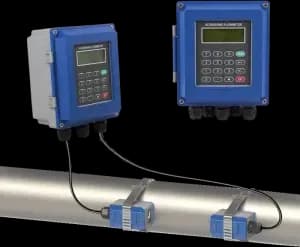

Ultrasonic Flow Meter
The device measures flow by calculating the travel time of an ultrasonic wave in liquid moving forwards or backwards in the pipe.
Technical values
- Measuring principle
- Transit-time ultrasonic measurement
- Measurement accuracy
- ±%1
- Velocity range
- − 0 – ±7 m/s
- Uygulama
- Long-term online flow measurement
- Pipe diameter range
- DN25 – DN6000 mm
- Boru malzemesi
- Steel, stainless steel, cast iron, copper, PVC, cement pipe, aluminium, GRP (glass fibre) and lined pipes
- Montaj
- Clamp-on, DIN rail mounting or ex-proof enclosure options
- Operating voltage
- 8–36 V DC or 85–264 V AC
- Power consumption
- 1.5 W
- Communication interfaces
- RS485 Modbus RTU
- Sensor specifications
- Protection class: IP68 Operating temperature: -30°C to +160°C Liquid turbidity: ≤ 10,000 ppm Submersible: up to 2 metres (potted sensor body)
- Converter specifications
- Protection class: IP67 Operating temperature: -20°C … +60°C Display: 2×20-character backlit LCD Supported languages: Turkish, English, Chinese, Italian Dimensions: 132 × 150 × 85 mm Max. relative humidity: 89% RH
- Compatible liquids
- Clean water, mains water Hot / cooling water, cooling towers Seawater, river water Wastewater / process water (low particle content) Chemicals (alcohols etc.) Oils (crude oil, diesel, fuel oils) Ultra-pure liquids and industrial process fluids
- Baud Rate
- 4800 – 19200
